Saietta Electric Drive

Vehicle Control Unit (VCU)

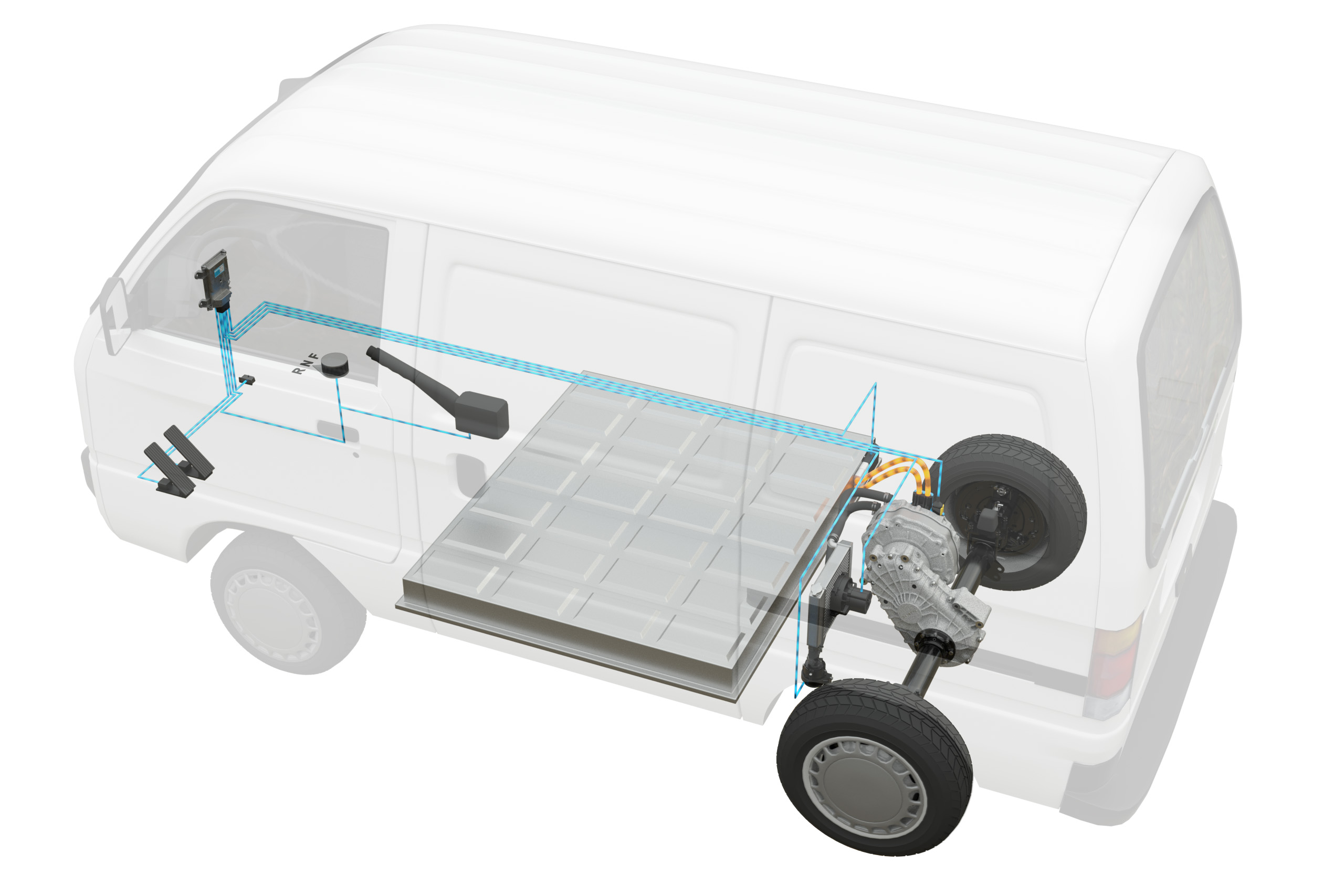

The Saietta Vehicle Control Unit (VCU) has been developed for lightweight vehicles in order to further simplify integration.

The Saietta VCU is capable of controlling vehicle operations such as;

2x	CAN 2.0/CAN-FD
2x	5 V Reference Outputs
10x	Analogue Inputs Pull Up resistors can be Configured in Vehicle Can be Used with Interrupt Edge-Detection
6x	Digital Inputs with Interrupt Edge-Detection
2x	PWM Inputs
6x	Low Side Outputs, 1.5 A Continuous, PWM 1 Hz-5 KHz
2x	Low Side Outputs, 2.5 A Continuous, PWM 1-100 Hz
2x	High Side Outputs, 1 A Continuous, PWM 1 Hz-1 kHz

7-18 V Input
Power Supply from KL30 with KL15 Wake
Wake-On-CAN
Fully Sealed Enclosure
Ambient Operating Range -4 to +85°C
UDS Diagnostics Interface with a Standard Workshop Scan Tool Diagnostics Codes Customised to Each Application
Custom Driver-Torque-Demand Filtering Calibration Response Tailored to Customer Requirements
Hardware Designed to ASIL C
