3w and 4w applications

eAxle

Patented Axial Flux Technology

Utilises patented, cutting edge eDrive in a solid axle layout providing a complete & flexible powertrain solution bespoke to customer requirements.

Flexible mounting positions and features with standard or customer defined brake & hub solutions enable impressive performance in a package with simple vehicle integration.

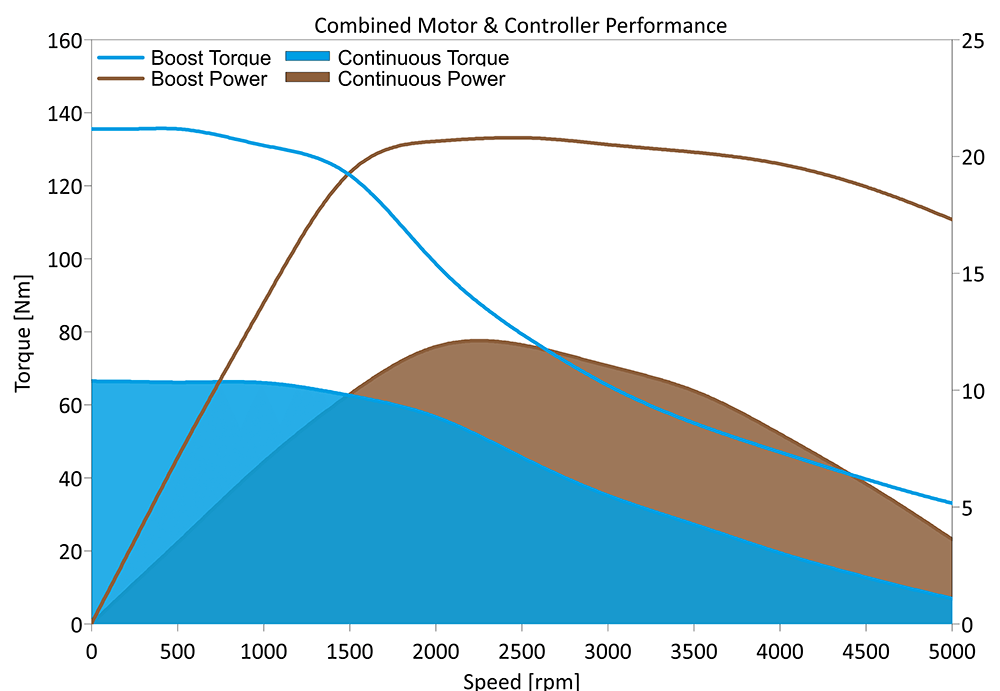

Motor & Controller Performance Boost (S2 - 10s) Peak (S2 - 2min) Continuous (S1 - 30min+)
Phase current (Arms) 600 450 280
Torque (Nm) 135 105 65
Torque knee point (rpm) 1300 1500 1600
Power (kW) 21 19 12
Motor, Controller & Transmission Overview (eDrive)
Model AFT140i-48V eDrive
Transmission type Customer defines
Dry mass Dependent on design
Transmission differential Included
Transmission stock gear ratios 5.27:1, 6.36:1, 8.98:1 and 11.39:1
Transmission custom gear ratio range 3.69:1 to 11.39:1
Transmission configuration options eDrive or eAxle

Patented Axial Flux Technology

Utilises patented, cutting edge eDrive in a solid axle layout providing a complete & flexible powertrain solution bespoke to customer requirements.

Flexible mounting positions and features with standard or customer defined brake & hub solutions enable impressive performance in a package with simple vehicle integration.

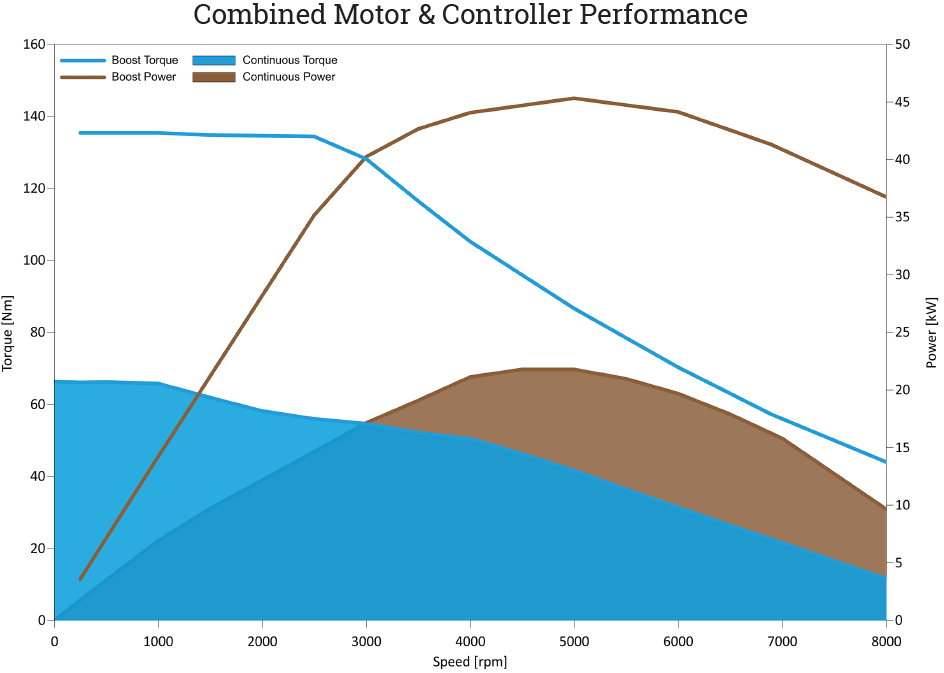

Motor & Controller Performance Boost (S2 - 10s) Peak (S2 - 2min) Continuous (S1 - 30min+)
Phase current (Arms) 600 450 280
Torque (Nm) 135 105 65
Torque knee point (rpm) 2600 2900 3000
Power (kW) 45 43 21
Motor, Controller & Transmission Overview (eDrive)
Model AFT140i-48V eDrive
Transmission type Customer defined
Dry mass Dependent on design
Transmission differential Included
Transmission stock gear ratios 5.27:1, 6.36:1, 8.98:1 and 11.39:1
Transmission custom gear ratio range 3.69:1 to 11.39:1
Transmission configuration options eDrive or eAxle

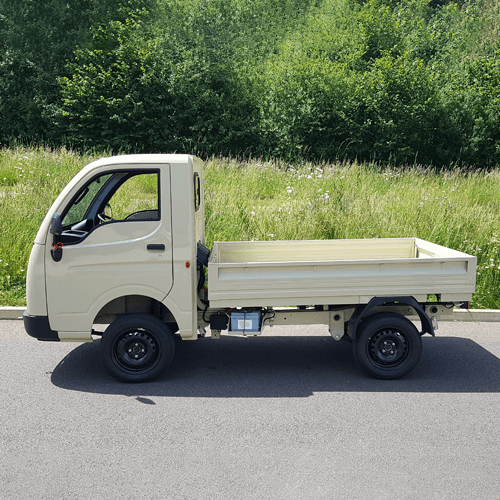

Relevant applications

3 & 4 Wheel

Want to know more?

Please contact us to find out more about our bespoke product solutions
